SM 9 / 125um Fiber Optic Pigtail

SM 9 / 125um Fiber Optic Pigtail

FOC COMMUNICATION CO., LTD provides a full range of pigtails, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode. The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.

Features

Superior qualified FC standard PC, APC, UPC, SPC polishing;
100% optic FC: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
100% optic FC: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
φ0.9mm, φ2.0mm, φ3.0mm cable optional;
Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
FC, FC, LC, MU, FC, MT-RJ, etc connector
Simplex and duplex connector available; 8) Good exchange ability and good durability;
Available in fiber bunch, ribbon fan-out, pigtail available;
Meets ISO9001, ROHS and Bell core GR 326-core FC standards;
Customized specifications are welcomed.

Materials

Dust caps: LDPE, transparent (RoHS)

Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)

Inner frame: PBT, white (RoHS)

Ferrule: Zirconium oxide ceramic material, white (RoHS)

Ferrule’s handle: Copper (C3602), Nickel age (RoHS)

Mechanical spring: Stainless steel (RoHS)

Locating snap ring: Copper alloy (HPD59-1), nickel age (RoHS)

Snap ring: Aluminum alloy 6063 (RoHS)

Ring: Copper alloy (HPD62), nickel age (RoHS)

Boot: Nylon or PBT, UPC/Blue, APC/Green, MM/Beige

Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR, etc.

Applications
Communication system
Fiber access network
CATV
LAN
Test equipment
Fiber optic sensor

Specifications

Fiber Optic Pigtail, Optical Fiber Pigtail, Fiber Pigtail, Fiber Pigtails

fiber optic pigtail connector

optical fiber pigtail

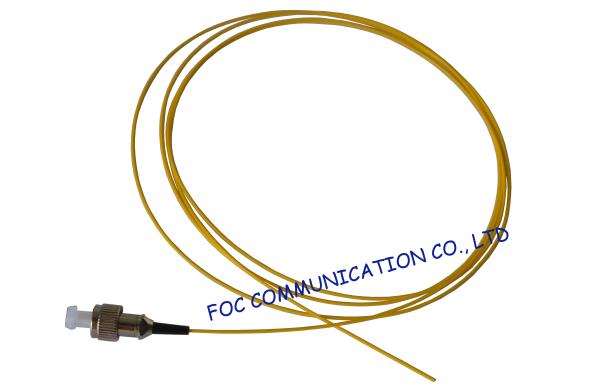

SM 9 / 125um Fiber Optic Pigtail Images
